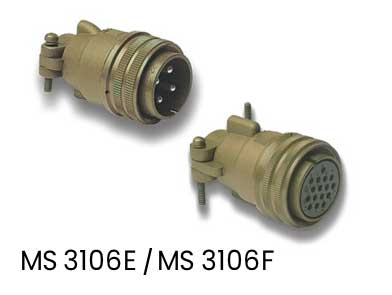

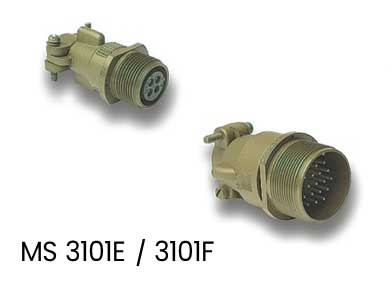

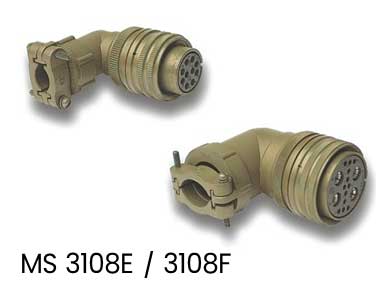

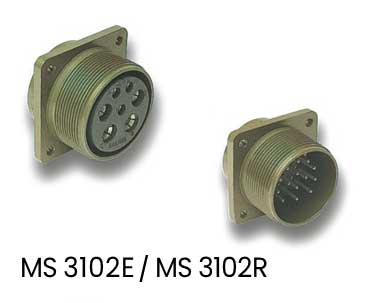

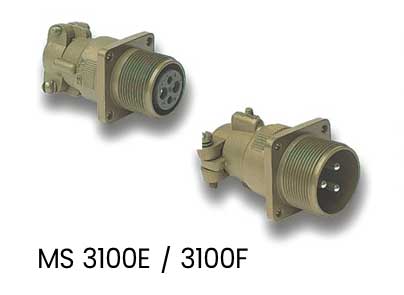

MS Circular Connectors
The Allied MS Connectors of connectors are circular threaded coupling connectors designed as per JSS 50812 (equivalent to American MIL C 5015), and are qualified by LCSO (Electronic Components Standards Organisation- Ministry of Defence, Government of India).
Connectors available from 1 Pin to 104 Pins, 13 different Shell Sizes, 5 Pin Sizes, for Cable size from 0.25 Sq mm to 50 Sq mm
General Specification
| Shell Housing | Aluminium Alloy |
| Plating | Olive Drab Cadmium / Nickel, Zinc Cobalt (Black), Zinc Cobalt |
| Insulator | Polychloroprene / Silicon, Viton, and flame-retardant halogen-free |
| Contact Material | Copper Base Alloy – Silver / Gold Plated |
| Mating Cycle | 50 |
| Operating Temperature | - 55 °C / + 125 °C |
| Insulation Resistance | Min. 5000 Meg Ohms at 500 VDC |
| Current Rating | Upto 150 Amps. (Depends on Contact Arrangement) |
| Working Voltage | 200 to 3000 VAC rms (Depends on Contact Arrangement) |
| Wire Termination | Solder / Crimp Type |
Contact Arrangements
Layout Dimensions
Accessories
